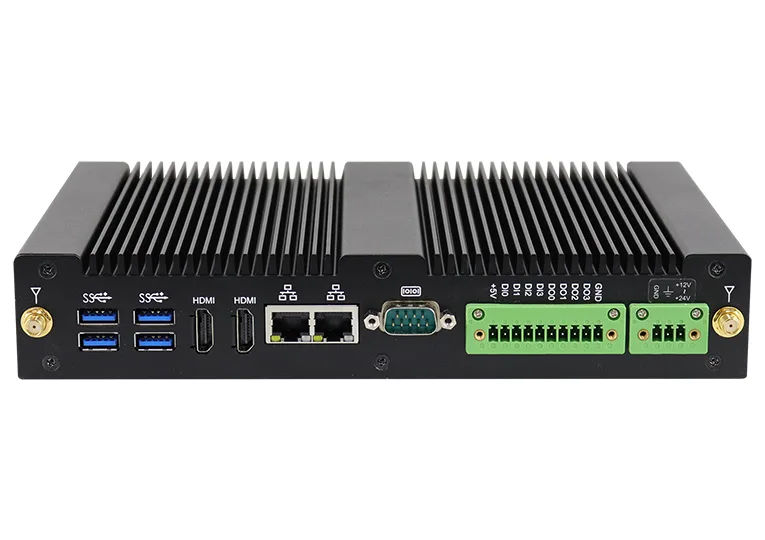

ASB200-918

Système sans ventilateur — AMD Embedded Ryzen™ Series Processor

Système sans ventilateur — AMD Embedded Ryzen™ Series Processor. Distribué au Canada et aux États-Unis par IBT Technologies, revendeur autorisé IBASE, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

AMD Embedded Ryzen™ Series SoC V1605B/ V1202B/ R1606G/ R1505G /R2312 /R2314

MEMORY

2x 8GB DDR4-2666 SO-DIMM Max.32GB, supports ECC

STORAGE

1x 2.5" HDD or SSD

OPERATING TEMP.

0°C~45°C (32°F~113°F)

ASB Series Fanless System…SBC System

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

N° DE PIÈCE FABRICANT ASB200-918 — IBASE Technology · VOIR LA PAGE DU FABRICANT ↗

Specifications

19 LIGNES

System Mainboard	IB918F-1605 /IB918F-1202 /IB918F-1606G / IB918F-1505G / IB918F-R2000 Series
CPU Type	AMD Embedded Ryzen™ Series SoC V1605B/ V1202B/ R1606G/ R1505G /R2312 /R2314
System Speed	Up to 3.6GHz
Memory	2x 8GB DDR4-2666 SO-DIMM Max.32GB, supports ECC

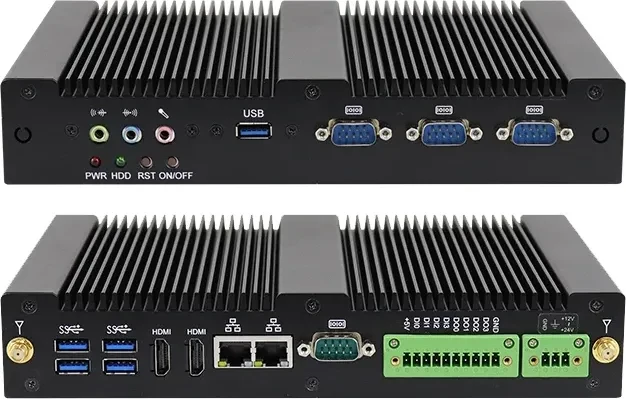

Front Panel External I/O	1x Audio Jack for Line-out/ Line-in/ MIC-in 1x Power LED/ 1x HDD LED/ 1x RST button/ 1x On/Off button 1x USB 3.0/2.0 by V1605B/ V1202B/ R1606G/ R1505G 3x DB9 for COM#2~4 (RS232)
Rear Panel External I/O	4 x USB 3.1 2x HDMI(2.0a) 1x DB9 for COM#1 (RS232/422/485) 2x LAN 1x Digital I/O (4-in/4-out)1x 3-pin DC-in terminal block for 12V(-10%) ~ 24V(+10%) 2x Antenna holes
Expansion Slots	2x M.2 (E-Key / M-Key)
Storage	1x 2.5" HDD or SSD
Construction	Aluminum & steel
Chassis Color	Black
Mounting	Desktop or wall mount (wall mount kit included)
Dimensions	240mm (W) x 162mm (D) x 42mm (H) 9.44" (W) x 6.37" (D) x 1.65" (H)
Weight	1.7kg
Operating Temperature	0°C~45°C (32°F~113°F)
Storage Temperature	-20°C ~80°C (-4°F~176°F)
Relative Humidity	5%~90%@45°C (non-condensing)
Vibration	Operating : 3Grms / 5~500Hz
Shock	Operating : 20G / 11ms Non-operating : 40G / 11ms
Certification	CE/LVD/FCC Class-B
