ASB210-953

Compact System with 11th Gen Intel® Core™ U-Series Processor

Compact System with 11th Gen Intel® Core™ U-Series Processor. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

Intel® Core™ i7-1185G7E ProcessorIntel® Core™ i5-1145G7E ProcessorIntel® Core™ i3-1115G4E Processor

MEMORY

2x DDR4-3200 SO-DIMM, Max.64GB

STORAGE

1x M.2 M-key 2280, 1x 2.5’’ HDD or SSD

OPERATING TEMP.

0°C~45°C (32°F~113°F) *with airflow 0.9m/s

ASB Series Fanless System…SBC System

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # ASB210-953 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

19 ROWS

System Mainboard	IB953AF-i7/ IB953AF-i5/ IB953EF-i3
CPU Type	Intel® Core™ i7-1185G7E ProcessorIntel® Core™ i5-1145G7E ProcessorIntel® Core™ i3-1115G4E Processor
System Speed	up to 4.4GHz
Memory	2x DDR4-3200 SO-DIMM, Max.64GB

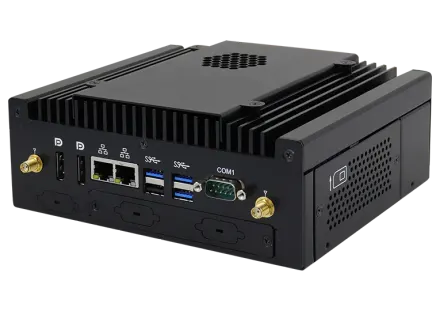

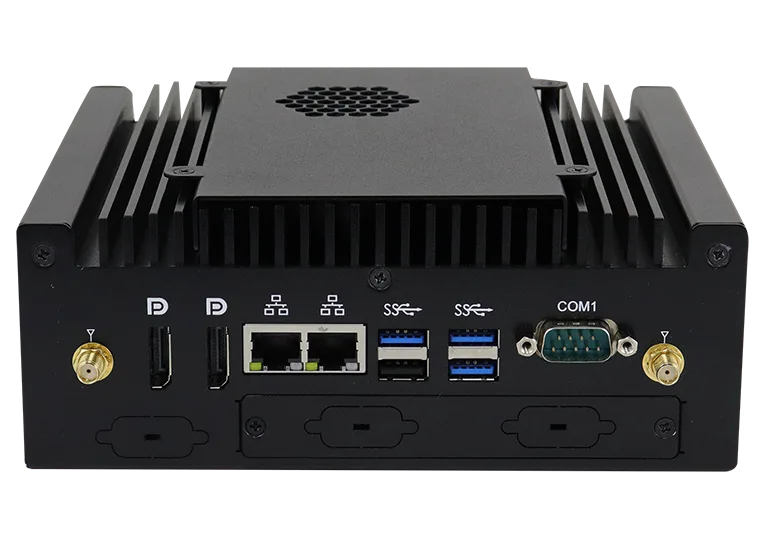

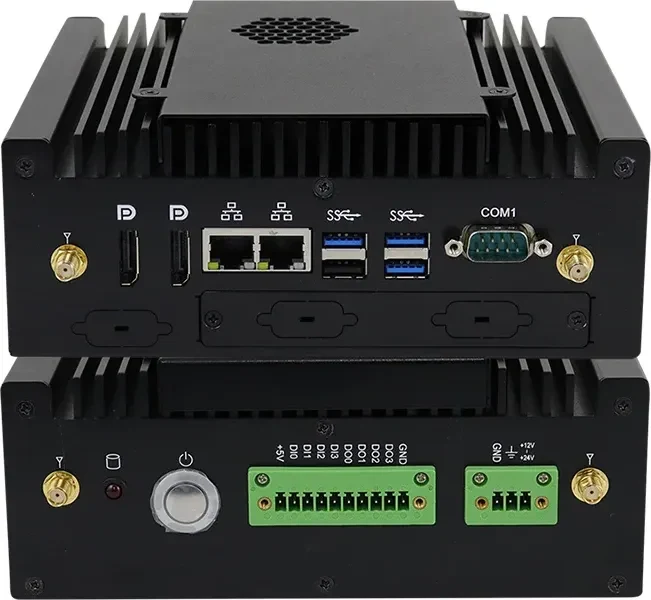

Front Panel External I/O	3x USB 3.11x USB 2.02x DisplayPort1x DB9 for COM#1 (RS232/422/485)2x Gigabit LAN

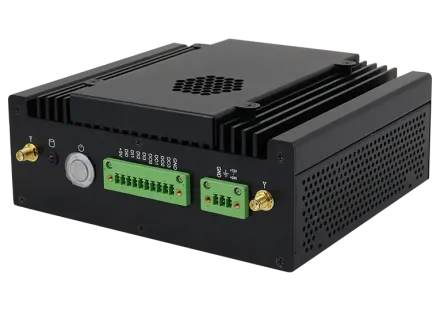

Rear Panel External I/O	1x Power button1x Digital I/O (4-in/4-out)2x Antenna holes1x HDD LED1x 3-pin DC-in terminal block for 12V (-10%) ~ 24V (+10%)
Expansion Slots	2x M.2 sockets (B-Key/ E-Key)
Storage	1x M.2 M-key 2280, 1x 2.5’’ HDD or SSD
Construction	Aluminum & steel1x Systemfan
Chassis Color	Black
Mounting	Desktop or wall mount (wall mount kit included)Optional VESA mount kit
Dimensions	180mm (W) x 150mm (D) x 72mm (H)7.08" (W) x 5.9" (D) x 2.83" (H)
Weight	1.5kg
Operating Temperature	0°C~45°C (32°F~113°F) *with airflow 0.9m/s
Storage Temperature	-20°C ~80°C (-4°F~176°F)
Relative Humidity	5%~90%@45°C (non-condensing)
Vibration	Operating: 1Grms / 3~500Hz
Shock	Operating : 20G / 11msNon-operating : 40G / 11ms
Certification	CE/LVD/FCC Class-B
