ASB210-966PRELIMINARY

Name: ASB210-966
Brand: IBASE Technology
SKU: ASB210-966
Availability: InStock

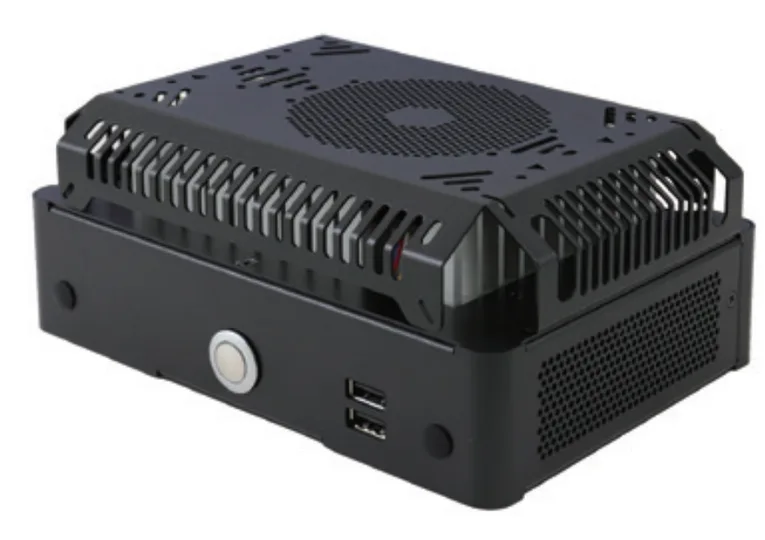

Compact System with IB966 motherboard

Compact system based on the IB966 motherboard. Local warranty support and engineering customization available on request.

CPU

3rd Generation Intel® Mobile Core™ i7/i5/i3/ Celeron® QC/ DC processors

MEMORY

1x DDR3 SO-DIMM, Max. 8GB (Non-ECC)

STORAGE

1x mSATA

OPERATING TEMP.

0°C~45°C (32°F~113°F) *with airflow 0.9m/s

ASB Series Fanless SystemSBC System

P/N # ASB210-966

14 ROWS

System Mainboard	IB966
CPU Type	3rd Generation Intel® Mobile Core™ i7/i5/i3/ Celeron® QC/ DC processors
CPU Socket	FCPGA988
Chipset	Intel® QM77 PCH
Memory	1x DDR3 SO-DIMM, Max. 8GB (Non-ECC)
LAN	1x Intel® 82579 Gigabit LAN controller
Storage	1x mSATA
Chassis Color	Black
Mounting	Desktop or wall mount (wall mount kit included)
Dimensions	127mm (W) x 75.4mm (D) x 180mm (H) 5.0" (W) x 2.97" (D) x 7.09" (H)
Operating Temperature	0°C~45°C (32°F~113°F) *with airflow 0.9m/s
Storage Temperature	-20°C ~80°C (-4°F~176°F)
Relative Humidity	5%~90%@45°C (non-condensing)
Certification	CE/LVD/FCC Class-B
