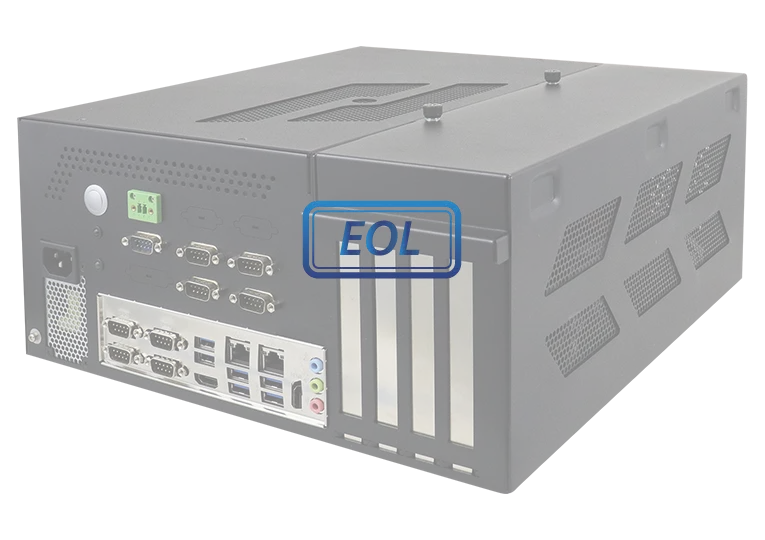

CMB106

High Performance Expandable Industrial Computer Powered by 9th/8th/7th/6th Gen Intel® Core DT processors

High Performance Expandable Industrial Computer Powered by 9th/8th/7th/6th Gen Intel® Core DT processors. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

9th/8th/7th/6th Gen Intel® Core™ DT processors (TDP 65W)

MEMORY

4x DDR4 U-DIMM, Max. 64GB

STORAGE

4x 2.5” SATA (supports RAID 0/1 )+Mini PCI-E1x M.2 (M-key 2280)

OPERATING TEMP.

0°C~45°C (32°F~113°F) (for 65W CPU) @60°C, noncondensing

CMB Series Expandable SystemExpandable Embedded System

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # CMB106 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

19 ROWS

System Mainboard	C236 MicroATX motherboards
CPU Type	9th/8th/7th/6th Gen Intel® Core™ DT processors (TDP 65W)
System Speed	Up to 4.2GHz (C236 supports ECC by CPU SKUs)
Memory	4x DDR4 U-DIMM, Max. 64GB
Front Panel External I/O	2-pin remote boot extension designDetachable side cover for GFX Card 4x slotsPower button2x HDMI6x USB 3.0 ports, 4x USB 2.0 (expandable)2x RJ45 Gigabit Ethernet ports2x RS232/422/485, 2x RS232
Rear Panel External I/O	Pluggable cooling-fan
Expansion Slots	1x PCI-E(x16), 1x PCI-E(x8), 1x PCI-E(x4)1x M.2 (M-key 2280)
Storage	4x 2.5” SATA (supports RAID 0/1 )+Mini PCI-E1x M.2 (M-key 2280)
Construction	SECC
Chassis Color	Black
Mounting	Desktop & wall mount
Dimensions	325mm(W) x 350mm(D) x 156mm(H)12.79”(W) x 13.77”(D) x 6.14”(H)
Weight	Depends on the configuration of power supply and motherboard related components
Operating Temperature	0°C~45°C (32°F~113°F) (for 65W CPU) @60°C, noncondensing
Storage Temperature	-20°C~80°C (-4°F~176°F), @60°C, non-condensing
Relative Humidity	10~95%, non-condensing@60°C
Vibration	With SSD: 1Grms, IEC 60068-2-64, random, 5Hz~500Hz
Shock	Operating 20G, IEC 60068-2-27, half-sine, 11 ms duration With SSDNon-Operating 40G, IEC 60068-2-27, half-sine, 11 ms duration With SSD
Certification	CE / FCC Class-A / LVD
