EMBEDDED SYSTEMS / IN STOCK

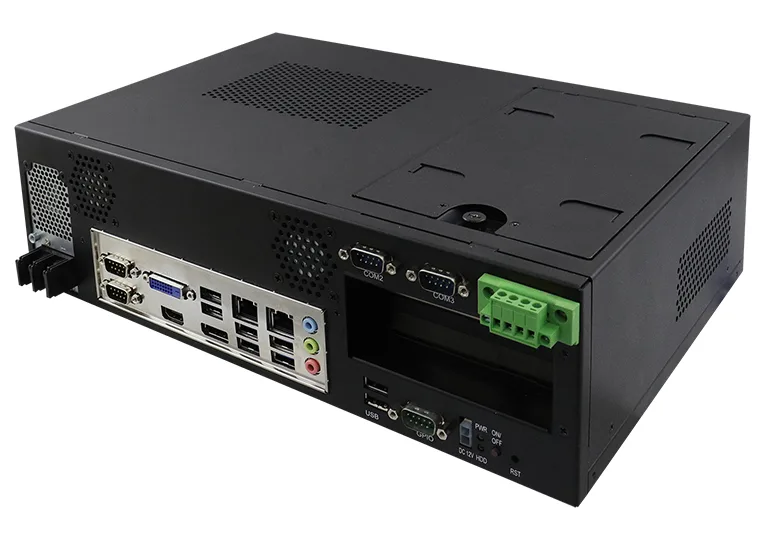

CMI202-991

Expandable System with 6th Generation Intel® Core™ i7/i5/i3 / Pentium® / Celeron® DT processors

Expandable System with 6th Generation Intel® Core™ i7/i5/i3 / Pentium® / Celeron® DT processors. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

6th Generation Intel® Core™ i7/i5/i3 / Pentium® / Celeron® desktop processors

MEMORY

2x 8G DDR4-2400 SO-DIMM, Max.32GB

STORAGE

2x 2.5" SATA HDD or SSD

OPERATING TEMP.

0°C~45°C (32°F~113°F)

CMI Series System with…Mini ITX System

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # CMI202-991 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

20 ROWS

System Mainboard	MI991AF
CPU Type	6th Generation Intel® Core™ i7/i5/i3 / Pentium® / Celeron® desktop processors
PCH	Intel® Q170
System Speed	i7-6700 (3.4GHz ~4.0 GHz)
Memory	2x 8G DDR4-2400 SO-DIMM, Max.32GB
Front-side Panel I/O	N/A
Rear-side Panel I/O	1x 2-pin DC input for 24V(±10%)1x 2-pin DC output for 12V(±10%)1x Power on/off button1x Reset button1x Power LED, 1x HDD LED1x DB9 (for GPIO 4-in & 4-out)3x RS232 for COM#2~4 (2-ports thru pin header)1x RS232/422/485 for COM#16x USB 3.0 ,2x USB 2.02x System fans2x RJ45, 1x Audio port for Line-in/Line-out/Mic-in1x SPK Out (6W output) thru ID107 (optional)1x DVI-D, 1x HDMI, 1x DisplayPort
Storage Interface	2x 2.5" SATA HDD or SSD
Expansion Slots	1x PCI-E (x16) expansion slot Add-on card dimensions: up to 106mm x 200mm
Power Supply	Industrial 250W DC switching power supplyInput Voltage: Direct 24V(±10%) DC, 18A
Construction	SECC
Chassis Color	Black
Mounting Type	Wall mount & Dekstop
Dimensions	345mm (W) x 240mm (D) x 100mm (H) 13.5" (W) x 9.44" (D) x 3.93" (H)
Weight	4.4 kg
Operating Temperature	0°C~45°C (32°F~113°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	5% ~ 90% @45C (Non-condensing)
Vibration	Non-Operating : 1.0 grms / 5~500Hz / random Operating : 0.25 grms / 5~500Hz / random
Certification	CE / LVD / FCC Class-B (Pre-scan only)
