CMI203 System Family
Expandable System with 7th Gen Intel® Core™ Processor
Expandable System with 7th Gen Intel® Core™ Processor. Local warranty support and engineering customization available on request.
CPU
CMI203-992VF-X3G: 7th Gen Intel® Kabylake-H mobile ProcessorsCMI203-991: 6th Gen Intel® Core™ i7/i5/i3/ Pentium®/ Celeron® DT ProcessorsCMI203-990: 6th Gen Intel® Core™ i7/i5/i3/ Pentium®/ Celeron® MB Processors
MEMORY
CMI203-992VF-X3G: 1x DDR4-2400 SO-DIMMCMI203-991: 2x DDR4-2133 SO-DIMMCMI203-990: 2x DDR4-2133 SO-DIMM
STORAGE
SATA / M.2:CMI203-992VF-X3G: 1 x 3.5"or 2.5"HDD drive bay, 1x M.2 (M-Key)CMI203-991: 1x 3.5"or 2.5"HDD drive bayCMI203-990: 1x 3.5"or 2.5"HDD drive baymSATA:CMI203-992VF-X3G: 1x mSATACMI203-991: 1x mSATACMI203-990: 1x mSATA
OPERATING TEMP.
0°C~45°C (32°F~113°F)

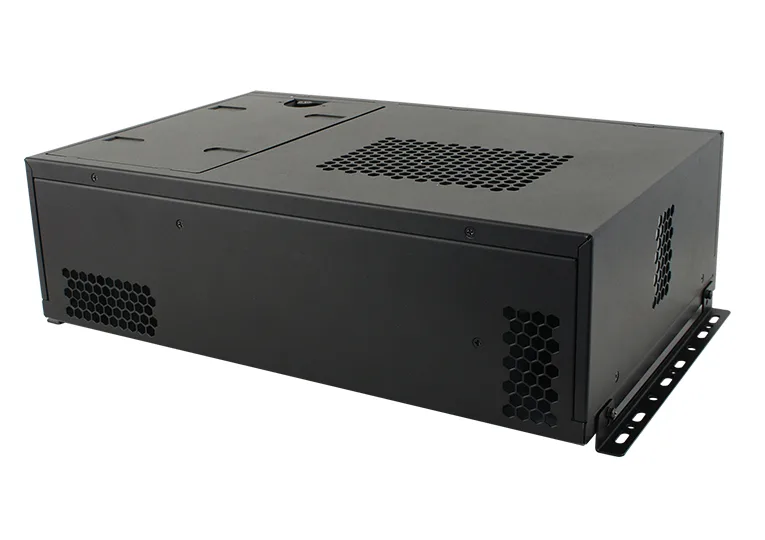

CMI Series System with…Mini ITX System
P/N # CMI203_System_Family
Specifications
20 ROWS
| System Mainboard | CMI203-992VF-X3G: MI992VFCMI203-991: MI991AF/MI991EFCMI203-990: MI990VF/MI990EF |
|---|---|
| CPU Type | CMI203-992VF-X3G: 7th Gen Intel® Kabylake-H mobile ProcessorsCMI203-991: 6th Gen Intel® Core™ i7/i5/i3/ Pentium®/ Celeron® DT ProcessorsCMI203-990: 6th Gen Intel® Core™ i7/i5/i3/ Pentium®/ Celeron® MB Processors |
| PCH | CMI203-992VF-X3G: Intel® CM238CMI203-991: MI991AF: Intel® Q170MI991EF: Intel® H110CMI203-990: MI990VF: Intel® CM236MI990EF: Intel® HM170 |
| System Speed | CMI203-992VF-X3G: Up to 3.7 GHzCMI203-991: Up to 4.0 GHzCMI203-990: Up to 3.7 GHz |
| Memory | CMI203-992VF-X3G: 1x DDR4-2400 SO-DIMMCMI203-991: 2x DDR4-2133 SO-DIMMCMI203-990: 2x DDR4-2133 SO-DIMM |
| Front-side Panel I/O | N/A |
| Rear-side Panel I/O | 1x AC-outlet, 1x Power button, 1x reset button1x Power LED, 1x HDD LED1x DB9M for GPIO (4-in & 4-out)3x RS232 ports via pin header2x USB 2.0 ports via pin header2x system fansBased on different motherboard I/O ports |
| Storage Interface | SATA / M.2:CMI203-992VF-X3G: 1 x 3.5"or 2.5"HDD drive bay, 1x M.2 (M-Key)CMI203-991: 1x 3.5"or 2.5"HDD drive bayCMI203-990: 1x 3.5"or 2.5"HDD drive baymSATA:CMI203-992VF-X3G: 1x mSATACMI203-991: 1x mSATACMI203-990: 1x mSATA |
| Expansion Slots | PCI-E Expansion: 1x PCI-E (x16) expansion slotAdd-on card Max. Size: 111mm(W) x 170mm(D) x 40mm(H) |
| Power Supply | Industrial 250W ATX power supplyInput voltage: 100V ~ 240VInput frequency: 47Hz ~ 63HzCompatible with IEC62368-1/EN62368-1 |
| Construction | SECC |
| Chassis Color | Black |
| Mounting Type | Wall mount & Dekstop |
| Dimensions | 345mm (W) x 225mm (D) x 100mm (H)13.58" (W) x 8.86" (D) x 3.94" (H) |
| Weight | 4.4kg |
| Operating Temperature | 0°C~45°C (32°F~113°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 5% ~ 90% @45C (Non-condensing) |
| Vibration | Non-Operating: 1.0 grms / 5~500Hz / randomOperating: 0.25 grms / 5~500Hz / random |
| Certification | CE / LVD / FCC Class B (Pre-scan only) |
