EMBEDDED SYSTEMS / IN STOCK

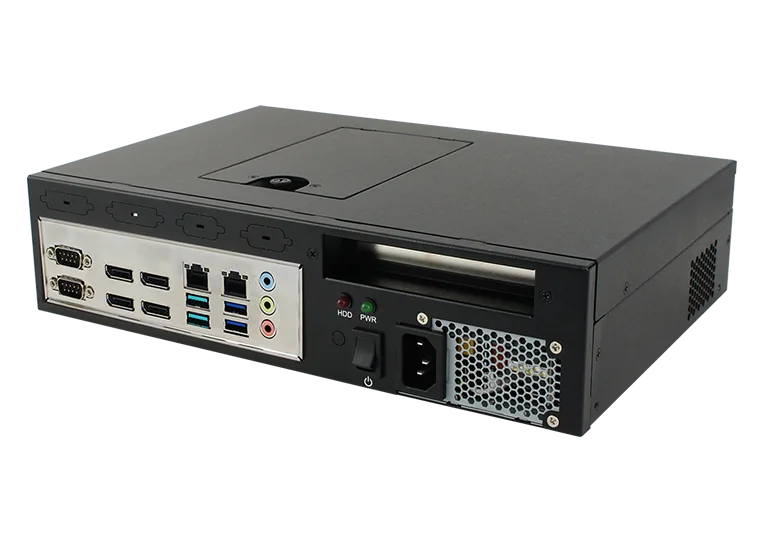

CMI211-989

Expandable System with AMD Ryzen™ Embedded V2000 series Processor

Expandable System with AMD Ryzen™ Embedded V2000 series Processor. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

AMD Ryzen™ Embedded V2000 series

MEMORY

2x DDR4-3200 SO-DIMM

STORAGE

SATA: 1x 2.5" HDD drive bayM.2 / mSATA: 1x M.2

OPERATING TEMP.

0°C~45°C (32°F~113°F)

CMI Series System with…Mini ITX System

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # CMI211-989 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

20 ROWS

System Mainboard	MI989F
CPU Type	AMD Ryzen™ Embedded V2000 series
PCH	AMD integrated SoC
System Speed	Up to 4.15 GHz
Memory	2x DDR4-3200 SO-DIMM
Front-side Panel I/O	2x USB 2.0 ports2x Antenna hole

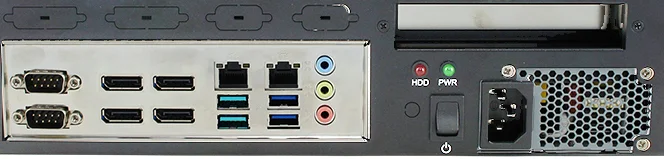

Rear-side Panel I/O	2x COM4x DisplayPort 1.42x RJ-45 Gigabit Ethernet port2x USB 3.1 ports2x USB 2.0 ports1x Audio port for [Line-in / Line-out / Mic-in]1x AC-inlet, 1x Power button1x Power LED, 1x HDD LED
Storage Interface	SATA: 1x 2.5" HDD drive bayM.2 / mSATA: 1x M.2
Expansion Slots	PCI-E Expansion: 1x PCI-E (x16) expansion slotAdd-on card Max. Size: 111mm(W) x 168mm(D) x 18mm(H)
Power Supply	Industrial 250W ATX power supplyInput voltage: 100V ~ 240VInput frequency: 47Hz ~ 63HzCompatible with IEC62368-1/EN62368-1
Construction	SECC
Chassis Color	Black
Mounting Type	Wall mount & Desktop
Dimensions	300m (W) x 205mm (D) x 72mm (H)11.81" (W) x 8.07" (D) x 2.83" (H)
Weight	TBD
Operating Temperature	0°C~45°C (32°F~113°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	5% ~ 90% @45C (Non-condensing)
Vibration	Non-Operating : 1.0 grms / 5~500Hz / randomOperating : 0.25 grms / 5~500Hz / random
Certification	CE / LVD / FCC Class B (Pre-scan only)

CMI211-989

Specifications
