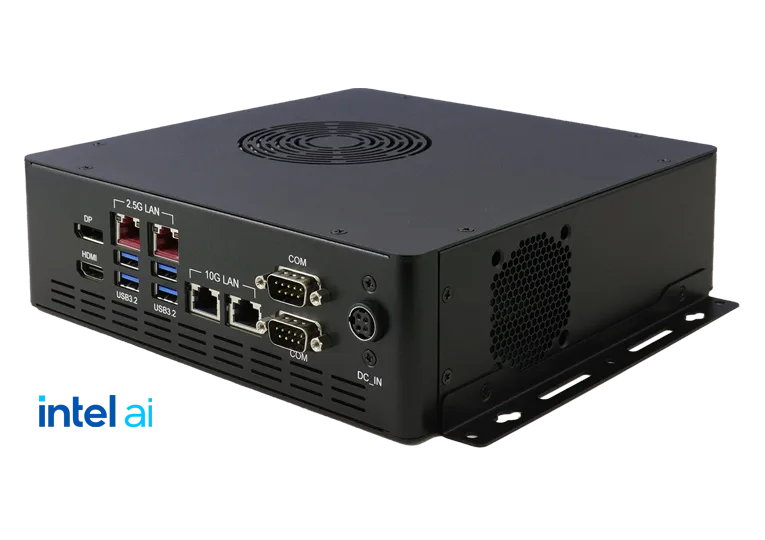

CMI300-1001
Slim System with MI1001AF Mini-ITX Motherboard
Slim System with MI1001AF Mini-ITX Motherboard. Local warranty support and engineering customization available on request.
CPU
14th/13th/12th Gen Intel® Core™ DT processors
MEMORY
2x DDR5-5600 SO-DIMM, Max. 64GB
STORAGE
1x M.2 (M2280), supports NVMe
OPERATING TEMP.
0 °C ~ 45 °C (32°F~113°F)
CMI Series System with…Mini ITX System
P/N # CMI300-1001
Specifications
20 ROWS
| System Mainboard | MI1001AF-10G |
|---|---|
| CPU Type | 14th/13th/12th Gen Intel® Core™ DT processors |
| System Speed | Up to 5.8GHz |
| Memory | 2x DDR5-5600 SO-DIMM, Max. 64GB |
| Front-side Panel I/O | 4x Antenna holes (reserved) power button with LED indicator |
| Rear-side Panel I/O | 4x USB 3.21x DisplayPort1x HDMI2x DB9 for COM (RS232/422/485)2x 2.5G LAN2x 10G LAN1x 24V DC-input |
| Storage Interface | 1x M.2 (M2280), supports NVMe |
| Expansion Slots | 2x M.2 sockets (E-key and M-key) |
| Construction | Aluminum & Steel1x System fan |
| Chassis Color | Black |
| Mounting Type | Desktop & wall mounting bracketOptional VESA mounting kit |
| Dimensions | 200mm(W) x 200mm(D) x 62mm(H)7.87” (W) x 7.87” (D) x 2.44” (H) |
| Weight | 1.9 kg |
| Others | With active CPU cooler, Optional power adaptor Power Requirement: 24V DC-inOperating System: Windows 10 /11, Ubuntu |
| Operating Temperature | 0 °C ~ 45 °C (32°F~113°F) |
| Storage Temperature | -20°C ~ 80°C (-4°F~176°F) |
| Relative Humidity | 5% ~ 90% @45°C (non-condensing) |
| Vibration | Operating: 1 Grms / 3~500Hz |
| Shock | Operating: 20G/11 ms DurationNon-operating: 40G/11 ms Duration |
| Certification | CE, FCC Class B & LVD |
I/O — Rear panel
Front access
Where the CMI300-1001 is deployed
USE CASE
Network & security appliances
Firewall, SD-WAN, and traffic-inspection appliances needing multiple NICs.
USE CASE
Edge servers
Local MES, OPC UA aggregation, and time-series buffering at the plant edge.
USE CASE
Expandable industrial systems
Slot-based systems for frame grabbers, DAQ, and FPGA expansion cards.
USE CASE
Rack-mount deployment
1U/2U compute nodes for factory, energy, and telecom environments.
Have a specific use case?
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
