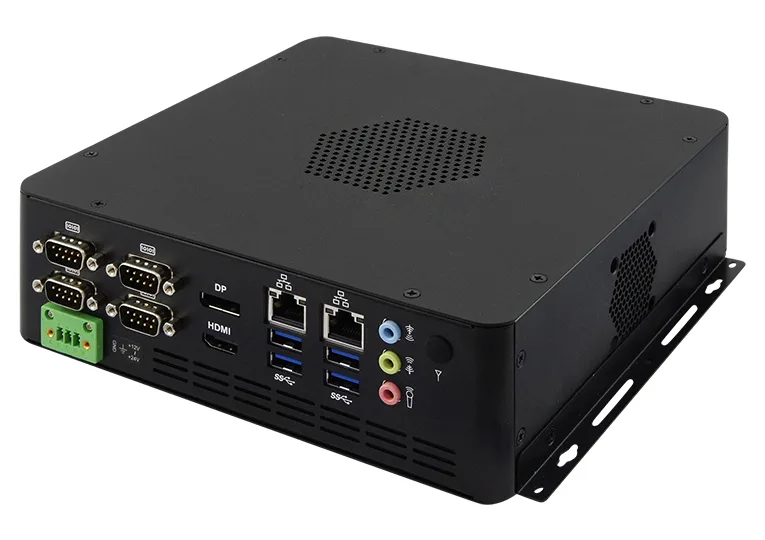

CMI300-988
Slim System with MI988F Mini-ITX Motherboard
Slim System with MI988F Mini-ITX Motherboard. Local warranty support and engineering customization available on request.
CPU
AMD Ryzen™ Embedded V1000 Series
MEMORY
2x 4GB DDR4 SO-DIMM, Max. 32GB
STORAGE
1x 2.5" SSD
OPERATING TEMP.
0°C~45°C (32°F~113°F)
CMI Series System with…Mini ITX System
P/N # CMI300-988
Specifications
20 ROWS
| System Mainboard | MI988F |
|---|---|
| CPU Type | AMD Ryzen™ Embedded V1000 Series |
| PCH | N/A |
| System Speed | Up to 3.8GHz |
| Memory | 2x 4GB DDR4 SO-DIMM, Max. 32GB |
| Front-side Panel I/O | 2x Antenna hole reservedpower button |
| Rear-side Panel I/O | 2x RS232/422/485 for COM#1~#22x RS232 for COM#3~#44x USB 3.1 ports2x RJ-45 Gigabit Ethernet port1x HDMI+DisplayPort1x Audio port for [Line-in / Line-out / Mic-in]1x Antenna hole reserved |
| Storage Interface | 1x 2.5" SSD |
| Expansion Slots | 1x Mini PCI-E socket, 1x M.2 (M Key:2280) |
| Power Supply | 84W power adaptor |
| Construction | Aluminum & steel |
| Chassis Color | Black |
| Mounting Type | Desktop or wall mount bracketOptional VESA mount kit |
| Dimensions | 200mm (W) x 200mm (D) x 62mm (H)7.87" (W) x 7.87" (D) x 2.44" (H) |
| Weight | 1.8 kg |
| Operating Temperature | 0°C~45°C (32°F~113°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 5%~90%@45°C (non-condensing) |
| Vibration | Operating: 0.25Grms / 5~500HzNon-operating: 1Grms / 5~500Hz |
| Certification | CE/FCC Class A |
I/O — Rear panel
Front access
Where the CMI300-988 is deployed
USE CASE
Network & security appliances
Firewall, SD-WAN, and traffic-inspection appliances needing multiple NICs.
USE CASE
Edge servers
Local MES, OPC UA aggregation, and time-series buffering at the plant edge.
USE CASE
Expandable industrial systems
Slot-based systems for frame grabbers, DAQ, and FPGA expansion cards.
USE CASE
Rack-mount deployment
1U/2U compute nodes for factory, energy, and telecom environments.
