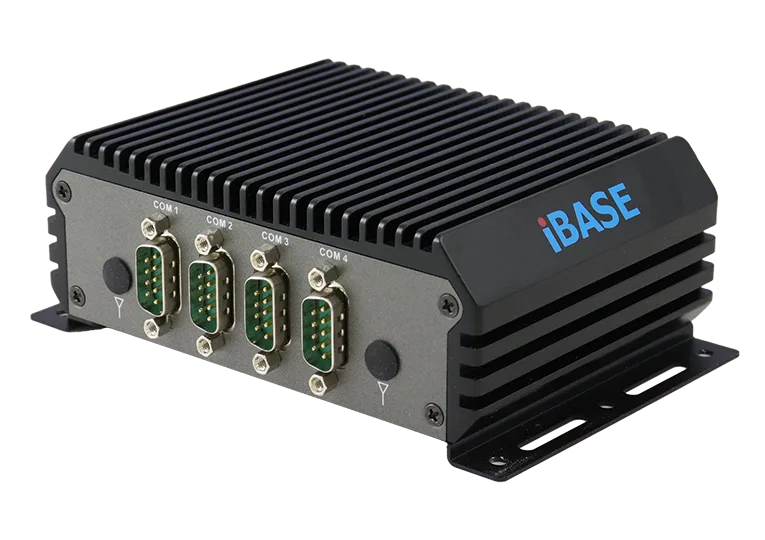

CP100

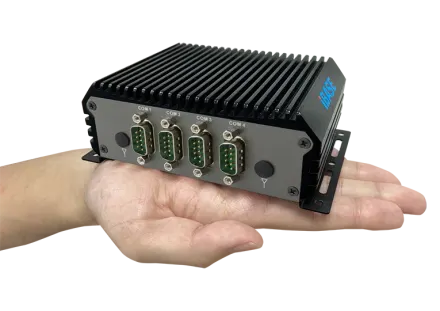

Palm-Sized Fanless System with AMD Ryzen™ Embedded R2000 Series Processors

Palm-Sized Fanless System with AMD Ryzen™ Embedded R2000 Series Processors. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

AMD Ryzen™ Embedded R2000 Series on board

MEMORY

Onboard DDR4 memory, Max. 8GB

STORAGE

1x SATA III1x M.2 (M-key)

OPERATING TEMP.

0°C~45°C (32°F~113°F)

CP Series Edge Computer…PICO ITX System

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # CP100 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

19 ROWS

System Mainboard	IB200 with AMD Ryzen™ R2314/ R2312 CPU
CPU Type	AMD Ryzen™ Embedded R2000 Series on board
System Speed	Up to 3.5GHz
Memory	Onboard DDR4 memory, Max. 8GB

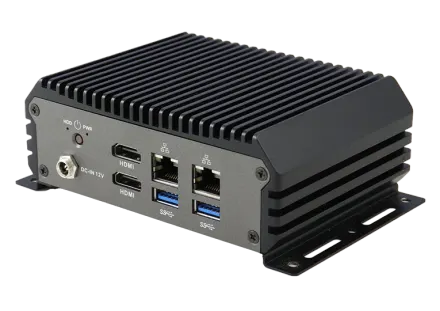

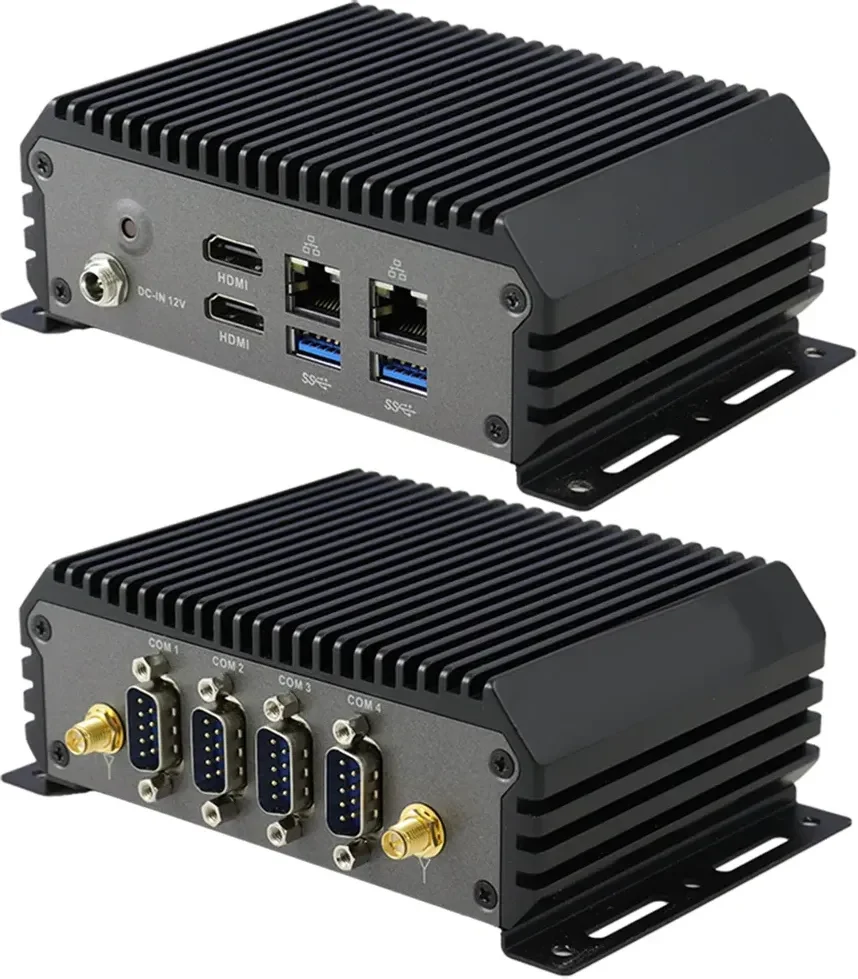

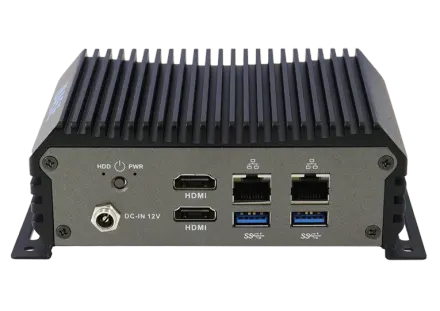

Front Panel External I/O	2x HDMI (2.0b), 1x 24-bit dual channel LVDS2x Intel® I226IT Gigabit LAN3x USB 2.0 (pin header) ; 2x USB 3.2 Gen2 (10Gbps)Built-in audio w/ Realtek audio codec ALC888S-VD2-GRDigital I/O(4-in/ 4-out)

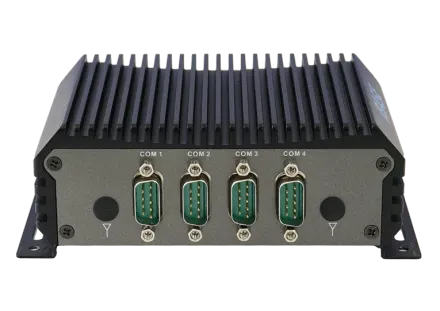

Rear Panel External I/O	COM1 / COM2 : RS-232/422/485 (Default: RS-232, adjustable via BIOS)COM3 / COM4 : RS232
Expansion Slots	1x M.2 (M-key, type 2280)1x M.2 (E-key, type 2230)
Storage	1x SATA III1x M.2 (M-key)
Construction	Aluminum & steel
Chassis Color	Gray
Mounting	Mounting bracket x 2 ; CP100 V-A1 RoHS2
Dimensions	94 mm (W) x 133 mm (D) x 51.4 mm (H)37” (W) x 52.3” (D) x 20.2” (H)
Weight	TBD
Operating Temperature	0°C~45°C (32°F~113°F)
Storage Temperature	-10°C ~ 80°C (-14°F ~ 176°F)
Relative Humidity	90% (non-condensing@60°C)
Vibration	Non-Operating: 1.0 grms / 5~500Hz / random operationOperatiing:0.25 grms / 5~500Hz / random operation
Shock	Operating: 20 g / 11 msNon-operating: 40 g / 11 ms
Certification	CE / LVD / FCC Class B (TBD)
