CSB110902
Compact Embedded PC With 3rd Generation Intel® Core™ i7/i5/i3/ Celeron® QC/DC Processors
Compact Embedded PC With 3rd Generation Intel® Core™ i7/i5/i3/ Celeron® QC/DC Processors. Local warranty support and engineering customization available on request.
Specifications
| System Mainboard | IB902 |
|---|---|
| CPU Type | 3rd Generation Intel® Mobile Core™ i7/i5/i3/ Celeron®QC/ DC processors ( TDP <=35W) |
| CPU Package | rPGA988B for 3rd Generation Intel® Core™ i7/i5/i3/ Celeron® QC/ DC processors |
| Chipset | Intel® HM76 PCH |
| Memory | 2x DDR3 1066/1333/1600 MHz SO-DIMM, Max. 16GB (Non-ECC) |
| Graphics | Intel® HD Graphics supports · OpenGL 3.0 · DirectX® 11 · OpenCL 1.1 · MFX Hardware Video Decoder – MPEG-2, AVC, · VC-1, JPEG |
| LAN | 1x Intel® 82579V Gigabit LAN controller |
| Expansion Slots | 1x Mini PCI-E(x1) slot for Wi-Fi, Bluetooth options |
| I/O Interface | 1x HDMI, 1x DVI-I · 1x Line-Out, 1x Line-In, 1x Mic-In · 1x Gigabit LAN, 2x USB 3.0 · 1x RS-232 (RJ45 connector) · 1x Power button with LED light, 1x DC jack |
| Auto Control and Monitoring | 256 segments, 0, 1, 2...255 (sec/min) |
| Power Requirement | +12V DC-in |
| Construction | SGCC |
| Weight | 1.2Kg |
| Chassis Color | Black |
| Storage | 1x mSATA, 1x SATA (3.0) 2.5” HDD Dock |
| Power Supply | 60W Power adapter |
| Mounting | Comes with standard mounting bracket for Desktop, Wallmount or VESA |
| Dimensions | 180mm(W) x 150mm(D) x 40mm(H) |
| Operating Temperature | 0°C~ 45°C (32°F~113°F) |
| Storage Temperature | -20° ~ 80°C (-4°F~176°F) |
| Relative Humidity | 5~90% @ 45°C, (non-condensing) |
| Vibration | mSATA: 5 grms / 5~500Hz / random operation |
| Certification | CE, FCC, UL, |
| MTBF | System MTBF: 60,060 hours (Based on Telcordia Issue 3) · Motherboard MTBF: 706,581 hours (Based on Telcordia Issue 3) |
Features
| Feature 1 | Supports 3rd Generation Intel® Core™ i7/i5/i3/ Celeron® QC/DC Processors |
|---|---|
| Feature 2 | 2x DDR3 SO-DIMM, Max. 16GB |
| Feature 3 | Intel® HD Graphics Engine |
| Feature 4 | 2x USB 3.0 ports |
| Feature 5 | 1x Mini PCI-E(x1) expansion slot |
| Feature 6 | WatchDog timer |
| Feature 7 | iSMART - for Auto-scheduler and power resume |
Ordering Information
| CSB110-902 | - SGCC chassis for IB902, 4GB DDR3 memory, 2.5” HDD holder, 60W power adaptor |
|---|

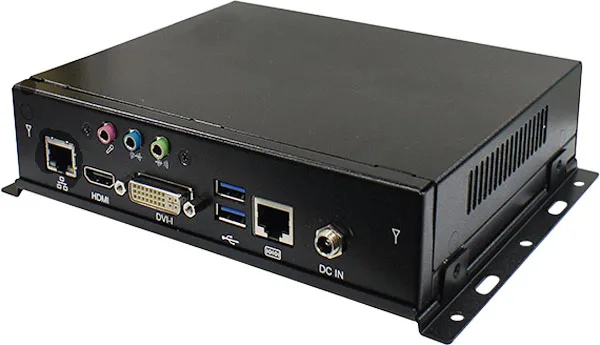

I/O — Rear panel
Front access
Where the CSB110902 is deployed
Firewall, SD-WAN, and traffic-inspection appliances needing multiple NICs.
Local MES, OPC UA aggregation, and time-series buffering at the plant edge.
Slot-based systems for frame grabbers, DAQ, and FPGA expansion cards.
1U/2U compute nodes for factory, energy, and telecom environments.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
