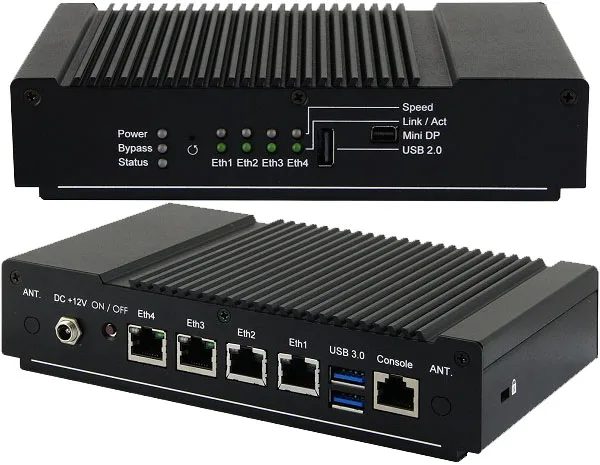

FWA5104

Slim AMD Embedded G-series SoC-Based Fanless Network Appliance w/ 4 GbE ethernet Ports

Slim AMD Embedded G-series SoC-Based Fanless Network Appliance w/ 4 GbE ethernet Ports. Supplied across Canada and the United States by IBT Technologies, with local warranty support and engineering customization available on request.

CPU

AMD Embedded G-series SoC, up to 1.2GHz

MEMORY

1x DDR3L SO-DIMM Max. 8GB, up to 1600MHz non-ECC

STORAGE

1x 2.5" SATA SSD drive bay · 1x SATA-III CFast socket

DISPLAY

SoC Integrated (optional) · 1x micro DP (optional)

Legacy catalogueIBASE Technology

REQUEST QUOTE REQUEST DATASHEET

MFR. PART # FWA5104 — IBASE Technology

Specifications

18 ROWS

CPU	AMD Embedded G-series SoC, up to 1.2GHz
Chipset	SoC Integrated
Memory	1x DDR3L SO-DIMM Max. 8GB, up to 1600MHz non-ECC
Display	SoC Integrated (optional) · 1x micro DP (optional)
LAN	4x Intel® I211-AT GbE controller
1x Bypass Segment	LAN3-4
Expansion Slots	1x half-size Mini PCI-E
Storage	1x 2.5" SATA SSD drive bay · 1x SATA-III CFast socket
Front I/O	3x System LEDs: Power / Bypass / Status (Dual color programmable) · 1x Factory Mode Reset (GPIO Control) · 4x sets LAN LEDs · 1x USB 2.0 port
Rear I/O	1x DC Input · 1x Power On/Off · 4x LANs · 2x USB 3.0 ports · 1x RJ45 Console
Power Supply	Full range 40W power adaptor / 12V
Dimensions	187.5mm (W) x 116mm (D) x 42mm (H) · 7.38”(W) x 4.57”(D) x 1.65”(H)
Weight	1.6 kg (3.53 lbs)
Operating Temperature	HDD: 0°C~ 40°C (32°F~104°F)
SSD	0°C~ 45°C (32°F~113°F)
Storage Temperature	-20° ~ 70°C (-4°F~158°F)
Operating Humidity	5~90%
Certification	CE/FCC

Features

7 ROWS

Feature 1	1st Generation AMD APU SoC Quad Core processor, up to 1.2 GHz
Feature 2	1x DDR3L SO-DIMM, Max. 8GB
Feature 3	4x Intel® I211-AT GbE ports, with One Bypass Segment
Feature 4	Integrate new Crypto Coprocessor
Feature 5	2x USB 3.0, 1x USB 2.0, 1x COM, 1x SATA III
Feature 6	1x CFast socket, 1x Mini PCI-E slot
Feature 7	1x Mini Display Port (FWA5104-4CG)
