EMBEDDED SYSTEMS / IN STOCK

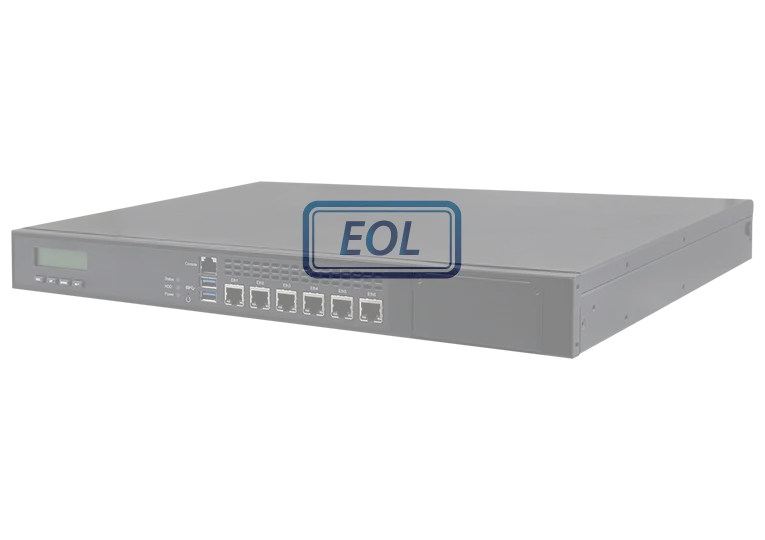

INA3600

Mainstream 1U Network Appliance with 10th Gen Intel® Xeon® W / Core™ i9/i7/i5/i3 Pentium® Gold / Celeron® Processor & up to 14 GbE Ports

Mainstream 1U Network Appliance with 10th Gen Intel® Xeon® W / Core™ i9/i7/i5/i3 Pentium® Gold / Celeron® Processor & up to 14 GbE Ports. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

INA3600W: LGA1200 Socket for Intel® Xeon® / Core™ i9/i7/i5/i3 / Pentium® Gold / Celeron® processorINA3600H: LGA1200 Socket for Intel® Core™ i9/i7/i5/i3 / Pentium® Gold / Celeron® processor

MEMORY

2x DDR4 UDIMMsMax. 64GB

STORAGE

3x 2.5" SATA drive bay (by SKU)

DISPLAY

1x VGA1x LCM

Mainstream 1U Network…Rackmount Network Appliance

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # INA3600 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

18 ROWS

CPU	INA3600W: LGA1200 Socket for Intel® Xeon® / Core™ i9/i7/i5/i3 / Pentium® Gold / Celeron® processorINA3600H: LGA1200 Socket for Intel® Core™ i9/i7/i5/i3 / Pentium® Gold / Celeron® processor
Chipset	INA3600W: Intel® W480E PCH chipsetINA3600H: Intel® H420E PCH chipset
Memory	2x DDR4 UDIMMsMax. 64GB
Display	1x VGA1x LCM
Ethernet	INA3600W:6x Intel® I211-AT GbE on boardOptional NIC module slot, Max. 8 LAN portsINA3600H:6x Intel® I211-AT GbE on board
Bypass	2-Segments, LAN3/4 & 5/6
Expansion	1x PCI-E x16 slot (8-lane) for INA3600W
IPMI	N/A
Storage	3x 2.5" SATA drive bay (by SKU)
TPM	TPM 2.0
I/O	1x LCM (by SKU)3x LED (Power/ HDD/ Status)1x Reset button1x RJ45 console2x USB3.1
Power Supply	Full range 300W power supply
Dimensions	438 (W) x 329 (D) x 44 (H) mm17.24" (W) x12.95" (D) x 1.73" (H)
Weight	9.0 kg (19.84 lbs)
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature	-20° ~ 70°C (-4°F ~ 158°F)
Operating Humidity	5 ~ 90%
Certification	CE/FCC

INA3600
