EMBEDDED SYSTEMS / IN STOCK

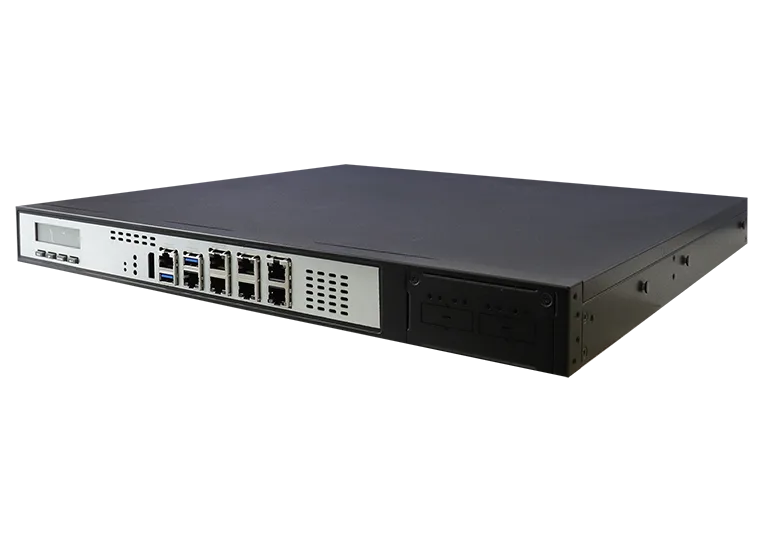

INA7302

Performance 1U Network Appliance with AMD Ryzen™ 7000 series & up to 14 GbE Ports

Performance 1U Network Appliance with AMD Ryzen™ 7000 series & up to 14 GbE Ports. Supplied across Canada and the United States by IBT Technologies, an authorized IBASE reseller, with local warranty support and engineering customization available on request.

CPU

AMD Ryzen™ 7000 seriesAM5 LGA1718

MEMORY

2x DDR5 ECC UDIMMs up to 5600 MT/s, Max. 128GB

STORAGE

HDD/SSD: 1x 2.5” Internal2x M.2 NVME (2242/2280)1x SATA DOM

DISPLAY

1x Display Port1x LCM

Performance 1U Network…Rackmount Network Appliance

REQUEST QUOTE DATASHEET (PDF)

MFR. PART # INA7302 — IBASE Technology · VIEW MANUFACTURER PAGE ↗

Specifications

18 ROWS

CPU	AMD Ryzen™ 7000 seriesAM5 LGA1718
Chipset	AMD B650 PCH
Memory	2x DDR5 ECC UDIMMs up to 5600 MT/s, Max. 128GB
Display	1x Display Port1x LCM
Ethernet	1x 2.5GbE RJ45 (Intel® I210V)4x 1GbE RJ45 (Intel® I350-AM4)2x 10GbE RJ45 (Intel® E610-XAT2)1x IBN cards1x HLHF PCIE card
Bypass	Via IBN module SKU
Expansion	1x PCI-E x16 expansion slot#1 (Slot#1 usage cansupport Gen5x16, Duo slot usage will render both slots to PCI-E Gen5x8 )1x PCI-E x8 expansion slot#22x M.2 (PCI-E Only)
IPMI	Optional module, compliant with IPMI 2.0
Storage	HDD/SSD: 1x 2.5” Internal2x M.2 NVME (2242/2280)1x SATA DOM
TPM	TPM 2.0
I/O	1x LCM3x LED (Power / HDD / Status)1x RJ45 console2x USB 3.01x MGMT port
Power Supply	Full-range 600W 1+1 redundant power supply
Dimensions	438(W) x 450(D) x 44.5(H)mm
Weight	N/A
Operating Temperature	0°C~ 40°C (32°F~104°F)
Storage Temperature	-20° ~ 70°C (-4°F~158°F)
Operating Humidity	5% ~ 90%
Certification	CE/FCC

INA7302
