SYSTÈMES EMBARQUÉS / EN STOCK

INA7600

Appliance réseau Performance 2U — Dual 3rd Gen Intel® Xeon® Scalable Processors & up to 64 GbE Ports

Appliance réseau Performance 2U — Dual 3rd Gen Intel® Xeon® Scalable Processors & up to 64 GbE Ports. Distribué au Canada et aux États-Unis par IBT Technologies, revendeur autorisé IBASE, avec soutien de garantie local et personnalisation d’ingénierie offerte sur demande.

CPU

Dual LGA4189 Socket for Intel® Xeon® ICL-SP

MEMORY

16x DDR4 RDIMMs Up to 3200MHzMax. 512GB

STORAGE

2x 2.5" or 4x 3.5" Swappable SATA drive bay (by SKU) 2x U.2 (PCI-E x4, SATA signal)

DISPLAY

1x VGA

Performance 2U Network…Rackmount Network Appliance

DEMANDER UNE SOUMISSION FICHE TECHNIQUE (PDF)

N° DE PIÈCE FABRICANT INA7600 — IBASE Technology · VOIR LA PAGE DU FABRICANT ↗

Specifications

18 LIGNES

CPU	Dual LGA4189 Socket for Intel® Xeon® ICL-SP
Chipset	Intel® C621A PCH Chipset
Memory	16x DDR4 RDIMMs Up to 3200MHzMax. 512GB
Display	1x VGA
Ethernet	2x Intel® I210-AT GbE on IDN901 daughter board8x or 4x NIC module, Max. 64 GbE ports
Bypass	Via IBN module SKU
Expansion	1x PCI-E x16 slot (8-lane)1x M.2 (M-Key) supports SATA 3.0 or PCI-E
IPMI	N/A
Storage	2x 2.5" or 4x 3.5" Swappable SATA drive bay (by SKU) 2x U.2 (PCI-E x4, SATA signal)
TPM	TPM2.0

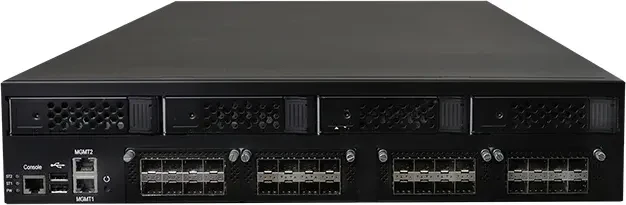

I/O	1x LCM (by SKU)3x LED (Power/ HDD/ Status)1x Factory default button (GPIO)1x RJ45 console2x USB 2.02x MGMT ports (LAN2 shared with IPMI NC-SI port)
Power Supply	Full range 1200W 1+1 redundant power supply
Dimensions	438 (W) x 660 (D) x 88 (H) mm 17.24" (W) x 25.98" (D) x 3.46" (H)
Weight	21.0 kg (46.3 lbs)
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature	-20° ~ 70°C (-4°F ~ 158°F)
Operating Humidity	5 ~ 90%
Certification	CE/FCC
