EMBEDDED SYSTEMS / IN STOCK

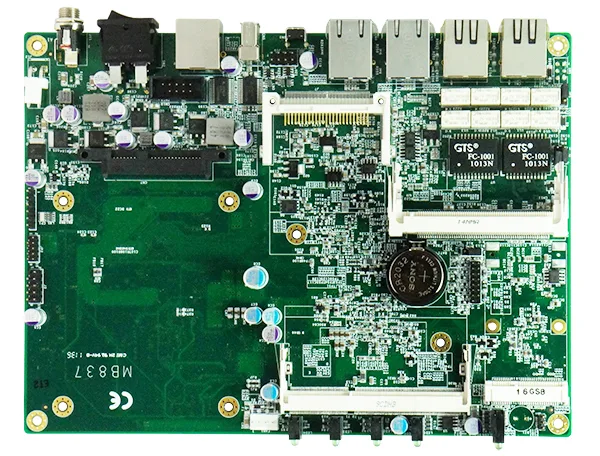

MB837

MB837(-D25_(-1U) - Networking MotherBoards with GBe Onboard Intel® Atom™ D2550 Networking Disk-size SBC w/ Intel® NM10 PCH

MB837(-D25_(-1U) - Networking MotherBoards with GBe Onboard Intel® Atom™ D2550 Networking Disk-size SBC w/ Intel® NM10 PCH. Supplied across Canada and the United States by IBT Technologies, with local warranty support and engineering customization available on request.

MEMORY

One DDR3, Non-ECC SO-DIMM · 800/1066MHz, up to 4GB

STORAGE

1x HDD drive bay, 1x CF socket

ETHERNET

Four Intel 82583V Gigabit LAN · RJ-45 on board · Bypass on LAN1/LAN2

OPERATING TEMP.

0°C~60°C (32°F~140°F)

Legacy catalogueIBASE Technology

REQUEST QUOTE REQUEST DATASHEET

MFR. PART # MB837 — IBASE Technology

Specifications

21 ROWS

Chipset	Intel® NM10 PCH
BIOS	AMI
System Memory	One DDR3, Non-ECC SO-DIMM · 800/1066MHz, up to 4GB
Integrated VGA	Intel® Atom™ integrated · Supports CRT via pin header · Shared memory, Max. 224MB
LAN	Four Intel 82583V Gigabit LAN · RJ-45 on board · Bypass on LAN1/LAN2
Audio	N/A
Storage	1x HDD drive bay, 1x CF socket
Multi I/O	NM10, Nuvoton NC6627UD · For keyboard, mouse, two RS-232, one SATA
Serial ATA Interface	1x SATA
Serial Ports	2x RS-232 COM ports
USB	3x USB 2.0 ports (1x on board, 2x via pin header)
Watchdog Timer	Generates system reset; 256 levels
Hardware Monitoring	Monitors system/CPU temperature and voltage status
Expansion Slots	1x Mini PCI · 1x Mini PCI-E (with USB signal)
Power Connector	+12V DC-in
Form Factor	5.25-inch disks ize
Dimensions	203mm x 146mm (8" x 5.75")
Power Consumption	TBC
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	10%~90% (non-condensing)

Features

7 ROWS

Feature 1	Intel® Atom™ Processor D2550, 1.86GHz
Feature 2	LAN Bypass Enable / Disable Pre-setting by
Feature 3	BIOS when Power On / Off
Feature 4	4x Intel® 82583V GbE ports
Feature 5	1x DDR3 SO-DIMM, 800~1066 MHz, up to 4GB
Feature 6	1x CF socket, 1x 2.5" HDD drive bay, 1x Mini PCI
Feature 7	socket, 1x Mini PCI-E (USB Signal) socket

Ordering Information

3 ROWS

MB837-D25	- 5.25", Intel® Atom™ D2550, NM10, 82583V 4x GbE, Bypass Eth1/2, SATA connector, CF scoket, Mini PCI, 12V DC-In
MB837-1U	-
PS2G	- PS/2 keyboard and mouse cable
