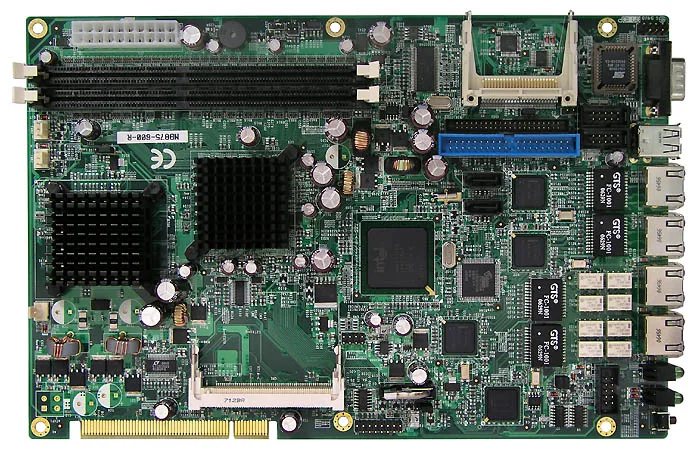

MB875

Intel® 852GM Chipset Custom Motherboard for 1U Rackmount

Intel® 852GM Chipset Custom Motherboard for 1U Rackmount. Supplied across Canada and the United States by IBT Technologies, with local warranty support and engineering customization available on request.

CPU

Socket 479 or CPU on board

MEMORY

Two DDR266/333 sockets support up to 2GB

STORAGE

CompactFlash socket, Type II, via IDE2 · Supports Intel® Pentium® M / Intel® Celeron® M processors, up to 2.0GHz @ 400MHz FSB · Intel 852GM Chipset, Two DDR socket, Max. 2GB · Four Intel® 82541PI GbE controllers for four GbE support · Edge connector supporting PCI 33MHz/32-bit interfaces · 4 x COM, 4 x USB 2.0, 2 x SATA, CF socket · Watchdogi timer, 1 x PCI, 1 x Mini PCI · 180mm x 270mm

ETHERNET

Four Intel® 82541PI Gigabit LAN · Four RJ-45 ports on board

Legacy catalogueIBASE Technology

REQUEST QUOTE REQUEST DATASHEET

MFR. PART # MB875 — IBASE Technology

Specifications

24 ROWS

CPU Socket	Socket 479 or CPU on board
CPU	Supports Intel® Pentium® M, Celeron® M · Up to 2.0GHz
CPU Front Side Bus ( FSB )	400MHz
Chipset	Intel® 852GM chipset + ICH4
BIOS	Award BIOS
System Memory	Two DDR266/333 sockets support up to 2GB
VGA	Intel® 852GM integrated graphics · DVMT 2.0 shared memory, Max. 96MB
LAN	Four Intel® 82541PI Gigabit LAN · Four RJ-45 ports on board
Multi I/O	Winbond W83627HF, Finktek 81216 · Supports 2x IDE (UDMA33/66/100), 2x SATA, · 4x RS-232, 1x KB, 1x Mouse
IDE Interface	Two enhanced IDE channel supports: · IDE channel 1 - 40 pin for master; 44 pin for slave · IDE channel 2 - CF socket for master · 2 IDE devices; supports UDMA33/66/100
SSD Interface	CompactFlash socket, Type II, via IDE2 · Supports Intel® Pentium® M / Intel® Celeron® M processors, up to 2.0GHz @ 400MHz FSB · Intel 852GM Chipset, Two DDR socket, Max. 2GB · Four Intel® 82541PI GbE controllers for four GbE support · Edge connector supporting PCI 33MHz/32-bit interfaces · 4 x COM, 4 x USB 2.0, 2 x SATA, CF socket · Watchdogi timer, 1 x PCI, 1 x Mini PCI · 180mm x 270mm
Serial ATA	Supports 2 ports
USB (2.0)	Supports 2 USB ports on board and 2 USB ports via pin header
Watchdog Timer	256 levels
Keyboard and Mouse Connector	PS/2 type
Edge Connectors	4x RJ45, COM1, 2x USB 2.0
Expansion	1 x Mini PCI socket · 1 x PCI Edge connector supporting PCI 33MHz/32-bit interfaces
Power Connector	ATX power connector
Other Features	GPInput switch, LEDs on edge include Power LED · HDD Access LED and GPO LED 1/2.
Form Factor	Custom Motherboard
Dimensions	180mm x 270mm
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-68°F~176°F)
Relative Humidity	10%~90% (non-condensing)
