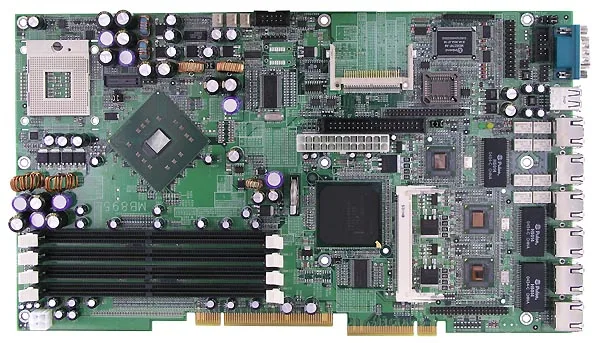

MB895

Socket 479 Motherboard with Intel® E7520Chipset for 1U Rackmount with six Gigabit Ethernet

Socket 479 Motherboard with Intel® E7520Chipset for 1U Rackmount with six Gigabit Ethernet. Supplied across Canada and the United States by IBT Technologies, with local warranty support and engineering customization available on request.

CPU

Socket 479

MEMORY

Four DDR2 sockets support up to 4GB DDR Registered memory; PC400/533 DDR SDRAM · Primary LAN · Three Intel® 82571EB dual port 4-lane PCI Express Gigabit LAN · Six RJ-45 ports on board · Multi I/O · 6300ESB, Winbond @83627HF chipset · Supports 2x IDE, 2x SATA, 2x RS-232, 1x FDD, 1x KB, · 1x Mouse, 2x SATA · IDE Interface

STORAGE

-20°C~80°C (-4°F~176°F)

OPERATING TEMP.

0°C~60°C (32°F~140°F)

Legacy catalogueIBASE Technology

REQUEST QUOTE REQUEST DATASHEET

MFR. PART # MB895 — IBASE Technology

Specifications

20 ROWS

CPU Socket	Socket 479
CPU	Supports Intel® Pentium® M, Celeron® M · Up to 2.26GHz
CPU	Front Side Bus (FSB) · 400MHz / 533MHz
Chipset	Intel® E7520 chipset + 6300ESB
BIOS	Award BIOS, 4Mbit, ACPI supported
System Memory	Four DDR2 sockets support up to 4GB DDR Registered memory; PC400/533 DDR SDRAM · Primary LAN · Three Intel® 82571EB dual port 4-lane PCI Express Gigabit LAN · Six RJ-45 ports on board · Multi I/O · 6300ESB, Winbond @83627HF chipset · Supports 2x IDE, 2x SATA, 2x RS-232, 1x FDD, 1x KB, · 1x Mouse, 2x SATA · IDE Interface
Built in 6300EB; Two enhanced IDE channel supports	IDE channel 1 - 40 pin for master; 44 pin for slave · IDE channel 2 - CF socket for master · 2 IDE devices; supports UDMA33/66/100 · SSD Interface · CompactFlash socket, Type II, via IDE2
Serial ATA	Supports 2 ports
USB (2.0)	Supports 4 USB ports on board · and 2 USB ports via pin header
Hardware Monitoring	Built in W83792D; monitors system/CPU · temperature and voltage status · Built in W83792D for Smart Fan 2 functionality
Watchdog Timer	256 levels · IrDA · Pin header
Keyboard and Mouse Connector	PS/2 type
Edge Connectors	6x RJ45, COM1, 4x USB 2.0
Expansion	1x Mini PCI socket · Edge connector supporting 8-lane PCI Express and PCI 33MHz/32-bit interfaces
Power Connector	24-pin ATX power connector
Form Factor	Custom Motherboard
Dimensions	183mm x 318mm
Operating Temperature	0°C~60°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-4°F~176°F)
Relative Humidity	10%~90% (non-condensing)

Features

7 ROWS

Feature 1	Socket 479 for Intel® Pentium® M and Intel® Celeron® M processors
Feature 2	IntelR E7520 Chipset, Four DDR400 memory sockets
Feature 3	Three Intel® 82571 PCIe to dual GbE controllers for six GbE support
Feature 4	Edge connector supporting 8-lane PCI-Express and PCI 33MHz/32-bit interfaces
Feature 5	Two SATA ports, six USB 2.0 ports, 3 COM ports, watchdog timer
Feature 6	Mini PCI socket, CF socket, front RJ45 LED indicators
Feature 7	183mm x 318mm

Ordering Information

2 ROWS

MB895	- Socket 479 Motherboard with Intel® E7520Chipset for 1U Rackmount with six Gigabit Ethernet
IP360	- Backplane for MB895 with PCI Express and PCI slots
