SI623N
DIGITAL SIGNAGE / IN STOCK

SI623N

SI-623NM -Three HDMI HD 4K Digital Signage Fanless Player Intel® Core-based

SI-623NM -Three HDMI HD 4K Digital Signage Fanless Player Intel® Core-based. Local warranty support and engineering customization available on request.

CPU
7th/6th Generation Intel® Core™ mobile processor · TDP <=35W
MEMORY
2x DDR4-2133 SO-DIMM, Dual channel, Max. 32GB
STORAGE
1x 2.5” SATA HDD/SSD
DISPLAY
Integrated Intel® HD Graphics 530
REQUEST QUOTE DATASHEET (PDF)
P/N # SI623N

Specifications

24 ROWS
System MainboardMBD623
CPU Type7th/6th Generation Intel® Core™ mobile processor · TDP <=35W
CPU SocketFCBGA 23 mm x 23 mm x 0.5 mm
ChipsetHM170/ QM170 PCH
Memory2x DDR4-2133 SO-DIMM, Dual channel, Max. 32GB
GraphicsIntegrated Intel® HD Graphics 530
LAN1x Gigabit LAN
Expansion Slots1x M.2 B key(3042) for storage, Wi-Fi, Bluetooth, 4G options · 1x M.2 M-Key (2280) for storage · 1x Mini PCI-E (full-size) for Wi-Fi, Bluetooth, 4G, or TV tuner options · 1x SIM card slot

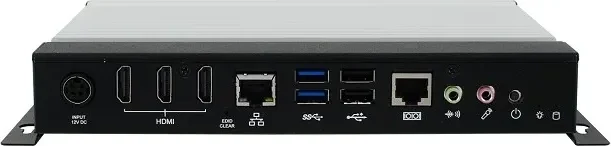

I/O Interface1x HDMI 2.0 + 2x HDMI 1.4 with hardware EDID emulation · 2x USB 3.0 · 2x USB 2.0 · 1x RJ45 for Gigabit LAN · 1x RJ45 for RS-232 serial port · 2x Audio connectors for Mic in / Line out · Power / HDD LED, 1x power button · 1x power jack connector
Auto Control and MonitoringWatchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement+12V DC
ConstructionAluminum + SGCC
Weight2.4 kgs (5.29lbs)
Chassis ColorBlack and white
Storage1x 2.5” SATA HDD/SSD
Power Supply84W power adaptor
MountingSlim design with wall mounting holes
Dimensions215.6mm(W) x 215.6mm(D) x 35mm(H) · 8.49”(W) x 8.49”(D) x 1.57”(H)
Operating Temperature0°C~ 45°C (32°F~113°F)
Storage Temperature-20°C ~ 80°C (-4°F~176°F)
Relative Humidity5%~90% @45°C (non-condensing)
VibrationSSD: 5 grms / 5~500Hz / random operation
CertificationCE, FCC class B, cULus and CCC
Operating System SupportWin7 32/64-bit, Win8.1 64-bit and Win10 64-bit Enterprise

Features

12 ROWS
Feature 1iSMART - for auto-scheduling and power resume
Feature 2iAMT(11.0), TPM1.2, vPro and Watchdog timer
Feature 37th/6th Generation Intel® Core™ processor
Feature 4Integrated Intel® HD Graphics 530
Feature 52x DDR4-2133 SO-DIMM, Dual channel, Max. 32GB
Feature 61x HDMI 2.0 + 2x HDMI 1.4 with independent audio output support
Feature 7Built-in hardware EDID emulation function
Feature 81x M.2 B key(3042) for storage, Wi-Fi, Bluetooth, 4G options
Feature 91x M.2 M-Key(2280) for storage
Feature 101x Mini PCI-E (full-size) for Wi-Fi, Bluetooth, 4G, or TV tuner options
Feature 111x 2.5” SATA HDD/SSD for storage
Feature 12Compact and fanless design

Ordering Information

2 ROWS
SI-623-N- Book-Size Signage Player with MBD623 Intel® Core™ i7-6822EQ Processor (8M Cache, up to 2.80 GHz), 2x 4GB DDR4 2133 SO-DIMM memory, 2.5” SATA SSD 128GB and 84W power adaptor
SI-MK3AMounting bracket for SI-304/SI-122-N/SI-313/SI-313-N/SI-324/SI-613/SI-623 series
