SI642N
DIGITAL SIGNAGE / IN STOCK

SI642N

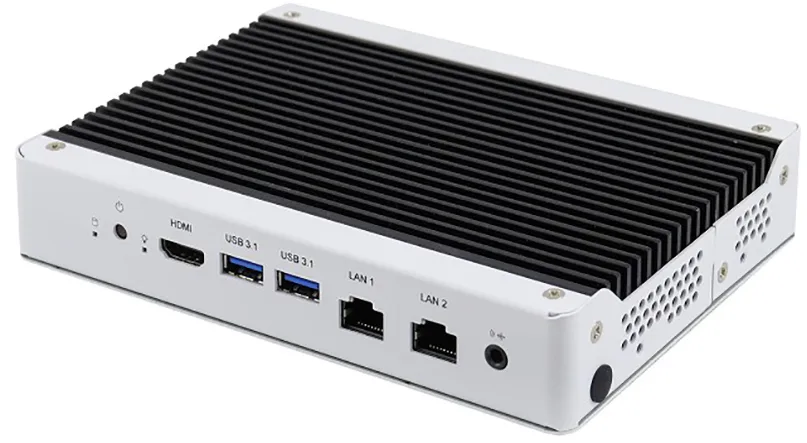

SI-642-N 4K Signage Player with Intel® HD graphics 620 8th Gen Intel® Core™ U-Series Processor Fanless and one HDMI and DP

SI-642-N 4K Signage Player with Intel® HD graphics 620 8th Gen Intel® Core™ U-Series Processor Fanless and one HDMI and DP. Supplied across Canada and the United States by IBT Technologies, with local warranty support and engineering customization available on request.

CPU
8th Generation Intel® Core™ mobile processor TDP<=25W
MEMORY
2x SO-DIMM DDR4 2400Hz, Max. 32GB
STORAGE
1x M.2 E-key (2280)
DISPLAY
Intel® UHD Graphics 620
Legacy catalogueIBASE Technology
REQUEST QUOTE REQUEST DATASHEET
MFR. PART # SI642N — IBASE Technology

Specifications

24 ROWS
System MainboardMBD642
CPU8th Generation Intel® Core™ mobile processor TDP<=25W
CPU SocketFCBGA1528
ChipsetIntegrated
Memory2x SO-DIMM DDR4 2400Hz, Max. 32GB
GraphicsIntel® UHD Graphics 620
LAN1x Intel® I219LM Gigabit LAN · 1x Intel® I211AT Gigabit LAN
Expansion Slots1x B-Key (3042) for 4G LTE · 1x M-key (2280) for storage · 1x E-key (2230) for capture card option

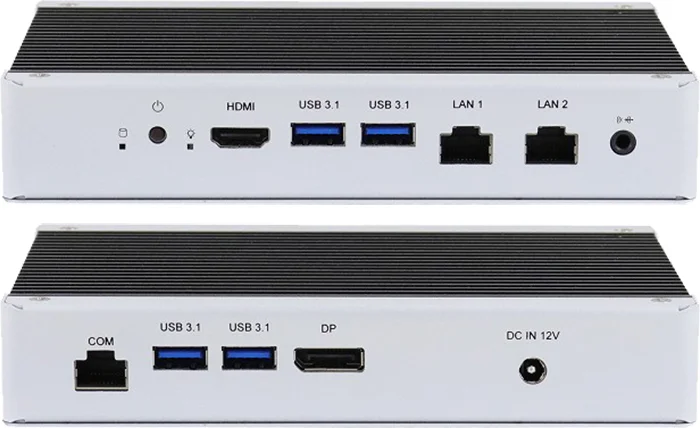

I/O Interface1x HDMI 2.0 + 1x Display port · 4x USB 3.1 (Gen2) · 2x RJ45 for Gigabit LAN · 1x RJ45 for RS232 serial port
Auto Control and MonitoringWatchdog Timer: 256 segments, 0, 1, 2…255 (sec/min)
Power Requirement+12V DC
ConstructionAluminum + SGCC
WeightTBD
Chassis ColorBlack and White
Storage1x M.2 E-key (2280)
Power Supply60W power adaptor
MountingStandard system bracket
DimensionsTBD
Operating Temperature0°C~ 45°C (32°F~113°F)
Storage Temperature-20° ~ 80°C (-4°F~176°F)
Relative Humidity10%~90% (non-condensing)
VibrationM.2: 5 grms / 5~500Hz / random operation
CertificationCE, FCC Class B, cULus and CCC
Operating System SupportWindows 10 IoT Enterprise RS5 64-bit · Linux Ubuntu 64-bit

Features

9 ROWS
Feature 1iSMART intelligent energy-saving and Observer remote monitoring technologies
Feature 28th Gen Intel® Core™ U-series processor
Feature 31x HDMI 2.0 + 1x Active DisplayPort 1.2 with independent audio output
Feature 42x DDR4 2400 SO-DIMM, dual channel, Max. 32GB
Feature 51x M.2 B-Key (3042) for 4G LTE
Feature 61x M.2 M-key (2280) for storage
Feature 71x M.2 E-key (2230) for WiFi or capture card option
Feature 8TPM 2.0, vPro and watchdog timer
Feature 9Slim and compact fanless design

Ordering Information

5 ROWS
SI-642-NT- Intel® Core™ i7-8665UE Processor (8M Cache, up to 4.40 GHz), 2x 4GB DDR4 2400 SO-DIMM memory, M.2 128GB and 60W power adaptor
SI-642-N8365T- Intel® Core™ i5-8365UE Processor (6M Cache, up to 4.10 GHz), 2x 4GB DDR4 2400 SO-DIMM memory, M.2 128GB and 60W power adaptor
SI-642-N8145T- Intel® Core™ i3-8145UE Processor (4M Cache, up to 3.90 GHz), 2x 4GB DDR4 2400 SO-DIMM memory, M.2 128GB and 60W power adaptor
SI-642-N4305T- Intel® Celeron® Processor 4305UE (2M Cache, 2.00 GHz), 2x 4GB DDR4 2400 SO-DIMM memory, M.2 128GB and 60W power adaptor
SI-MK3C- VESA bracket
