IB113
ARM-Based Wide Temperature SBC with NXP i.MX6 Cortex-A9 Dual Core 800MHz Automotive Grade CPU Risc Platform
ARM-Based Wide Temperature SBC with NXP i.MX6 Cortex-A9 Dual Core 800MHz Automotive Grade CPU Risc Platform. Local warranty support and engineering customization available on request.
Specifications
| Form Factor | 3.5" Disk-Size SBC |
|---|---|
| CPU | NXP Cortex™-A9 i.MX6 Dual 800MHz, automotive grade CPU |
| System Memory | 1GB DDR3 on board |
| Data Memory | 4GB eMMC on board · SD socket (up to 32GB) |
| Display | HDMI · 18/24 bit dual channel LVDS (up to 1920 x 1080) |
| Video Codec | Decode: 1080p, 30fps |
| Encode | 1080p, 30fps |
| LAN | 1st LAN: 10/100/1000 Base-T Ethernet (Gb LAN) |
| 2nd LAN | 10/100 Base-T Ethernet |
| Touch | PM6000 resistive touch IC (4/5-wires) on board |
| USB | I²C header on board (for capacitive touch) |
| Audio | Audio pin header (1x microphone, 1x speaker) |
| RTC | Seiko RTC IC on board |
| Watchdog | 256 Levels |
| Edge I/O | 1x 2nd 10/100 LAN · 1x USB 2.0 Host (Type-A) · 1x USB OTG (mini-USB Type-B) · 1x COM RS-232/422/485 · 1x SD socket (up to 64GB) · 1x DC-in jack · 1x HDMI (Type-A) · 1x Reset button |
| Headers and Expansion Slots | Headers: · 8x GPIO pin header · 1x Debug port pin header · 1x USB2.0 Host box header · 1x I²C pin header · 1x 4/5-wire resistive touch pin header · 2x CAN Bus 2.0B (w/ isolation) pin headers · 1x Dual channel LVDS box header (supports full HD) · 1x Audio pin header (1x microphone, 1x speaker) · 1x SATA header |
| Slots | 1x Full-size Mini PCI-E with USB interface |
| Power | 12V~24V DC-in |
| Dimensions | 102mm x 147mm (4” x 5.8”) |
| Devices | WIFI/BT/3G+GPS moduel (option) |
| Software Support | Ubuntu Linux 12.04(kernel 3.0.35)/ Android 4.3 |
| Operating Temperature | -40°C~ 85°C (-40°F ~ 185°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Certification | CE/FCC Class A |
Features
| Feature 1 | NXP ARM Cortex-A9, i.MX6 Dual 800Mhz, automotive-grade processor |
|---|---|
| Feature 2 | Supports -40°C~ 85°C environment, all industrial-grade components |
| Feature 3 | Supports 12V~24V DC input voltage |
| Feature 4 | 1GB DDR3, 4GB eMMC on board |
| Feature 5 | Supports resistive touch panel (4/5-wires) and capacitive touch interface |
| Feature 6 | Supports OpenGL ES 2.0 and OpenVG 1.1 hardware accelerators |
| Feature 7 | Supports COM, CAN bus, USB-OTG, SD card, HDMI, dual channel LVDS |
| Feature 8 | Supports rich I/O interface for BOM customization |
Ordering Information
| IB113 | - |
|---|---|
| IB113A | - 3.5-inch SBC w/ automotive-grade NXP i.MX6 solo core (800Mhz), 1GB DDR3, 1x LAN , SD, 1x COM ports, Mini PCI-E(x1) slot, LVDS, HDMI, 8x GPIO, 4GB eMMC |
| HSIB113-BGA-B | - Heatsink for IB113 |
| HSIB113-BGA-A | - Heatsink for IB113A |

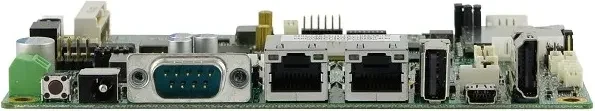

I/O — Rear panel
Front access
Where the IB113 is deployed
Drop-in board for custom enclosures, instrumentation, and purpose-built hardware.
PLC-adjacent controllers, motion control, and machine-tending applications.
Behind-display compute for purpose-built kiosk and terminal hardware.
Instrument hosts and ATE controllers built around a serviceable long-lifecycle board.
Our applications engineers will match your environment, software stack and I/O requirements to the right platform — or modify this one.
TALK TO AN ENGINEERResources
- DOWNLOAD ↓IB113 datasheetPDF document
- DOWNLOAD ↓IB113 user manualPDF document
- DOWNLOAD ↓Introduction to Watchdog TimerPDF document
Licensed customers get access to BIOS source, schematics, and full production test documentation.
